132 – Railing Base Flange

Qty 1-910-2425-4950+
Price each £7.60£7.22£6.84£6.46

£7.60

Quantity

Product Code: N/A Category:
Description

Description

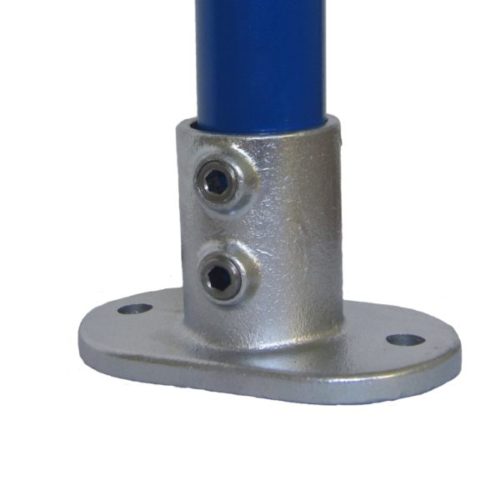

Base flange, usually used for uprights on level sites. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. Type 132-D48 is designed to meet the dimensional requirements for parapets as defined by BS7818:1995 (Pedestrian Restraint Systems in Metal).

Warning: To achieve optimum load characteristics, this fitting should be fitted so that the fixing holes are in line with the applied load.



Product Data & Dimensions

Size a (mm) c (mm) d (mm) e (mm) Hole Dia (mm) Weight (kg) Box qty*
A27 60 105 76 52 11 0.39 80
B34 71 127 89 62 15 0.65 45
C42 84 139 101 72 15 0.88 30
D48 89 152 114 86 15 1.17 23
E60 104 165 127 96 18 1.59 17
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
