Channel Support Systems
A full range of Channel & Bracketry to BS6946.
-
Bracketry (40)
Channel support bracketry, capping and square plate washers. Brackets are either 5mm or 6mm thick steel & complies with BS EN1011, with a minimum yield stress of 170N/mm2. All brackets are 40mm wide c/w 14mm dia. holes to accept M12 setscrews.Bracketry -
Cantilever Arms (1)
Cantilever arms for channel support systemsCantilever Arms -
Channel (8)
Plain and slotted channel. Deep, shallow & back to back.Commonly known as Unistrut. All channel is manufactured to BS6946. Loading calculations are in accordance with BS5950. Standard slot sizes are 28mm x 14mm at 50mm centres, (25mm x 11mm available to order) Standard lengths are 3m and 6m. Cutting service available.Channel -

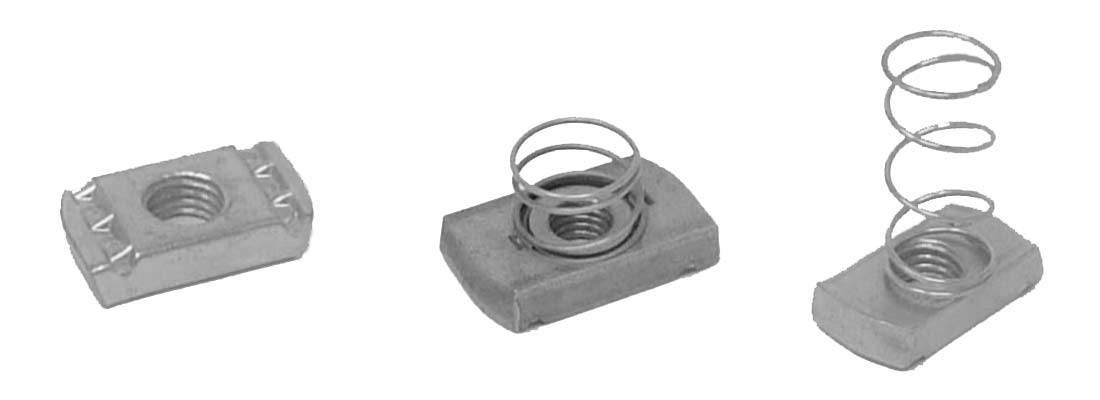

Channel Nuts (3)
Plain, long & short spring, channel nuts. M6 - M12Channel Nuts -

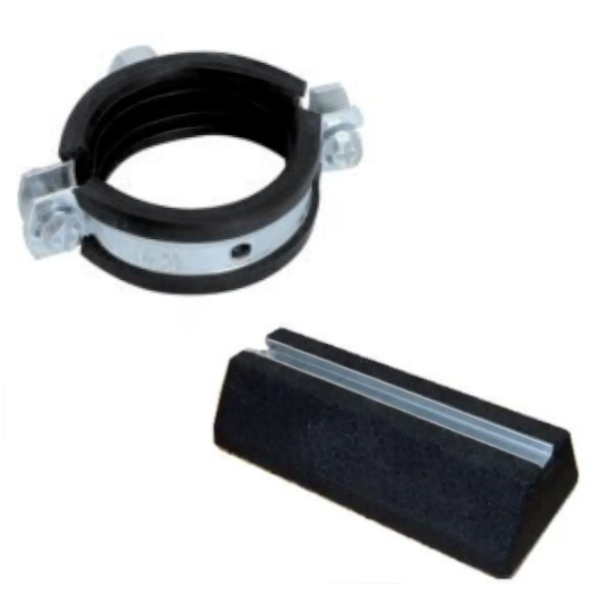

Pipe Clamps & Base Plates (2)
Rubber lined, 2 - part pipe clamps and base plates.Pipe Clamps & Base Plates -
Rod Hangers, Girder Clips & cut studs. (4)
For hanging fittings from purlins & beams etc.Rod Hangers, Girder Clips & cut studs.
