Description

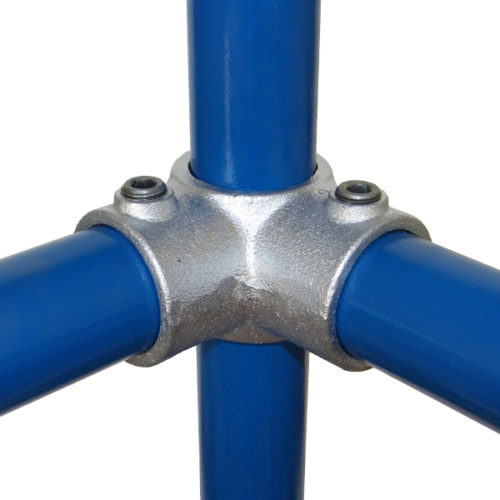

90° corner joint, often used on middle rail on level sites and often paired with type 128. The through tube (vertical in photo) cannot be joined within the fitting.

Product Data & Dimensions

Size	a (mm)	Weight (kg)	Box qty*
A27	41	0.29	105
B34	46	0.43	56
C42	60	0.63	40
D48	68	0.73	28
E60	84	1.3	15
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice. Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice. Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
