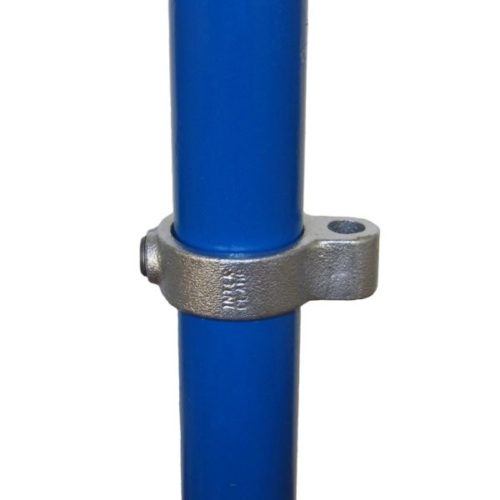

138 – Gate Eye

Tube (outside dia.)

Qty	1-9	10-24	25-49	50+
Price each	£6.51	£6.18	£5.86	£5.53

£6.51

Quantity

Product Code: N/A Category: Fittings

Often used with type 140 to form gate hinges. The tube cannot be joined within the fitting.

Product Data & Dimensions

Size	a (mm)	b (mm)	Hole Dia (mm)	Weight (kg)	Box qty*
A27	30	25.5	14	0.17	200
B34	33	25.5	14	0.20	172
C42	38	25	14	0.22	152
D48	41	25	14	0.24	150
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice. Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice. Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
