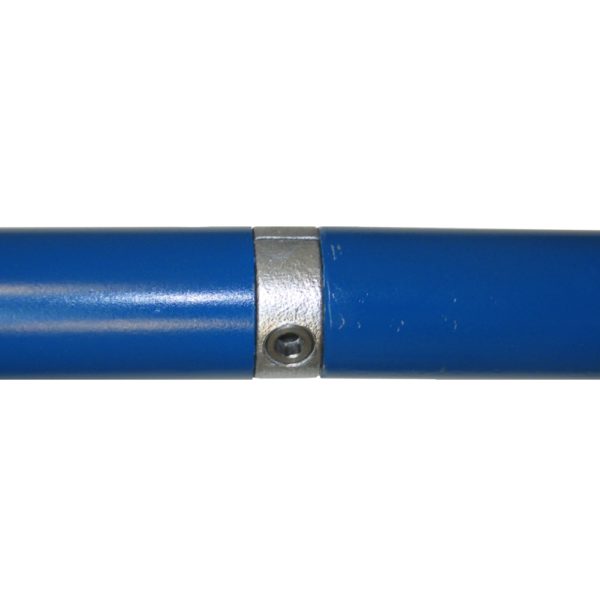

150 – Internal Expanding Joint

Qty 1-910-2425-4950+
Price each £4.87£4.63£4.38£4.14

£4.87

Quantity

Product Code: N/A Category:
Description

Description

The  is an expanding type fitting for joining two tubes of the same size. The fitting comprises two parts which are inserted into the tube, the fitting then expands when tightened by means of a hex key. The fitting forms a smooth joint between two tubes and for this reason is also commonly used in conjunction with the Interclamp DDA Assist range.

Note: This fitting can only be used for 3.25mm wall thickness tube (1”, 1 1/4” & 1 1/2” BS EN 10255, formerly BS 1387, medium weight) and must not be used as a load bearing joint, particularly for tensile loads. Type 149, which has superior load characteristics, may sometimes be used as an alternative.



Product Data & Dimensions

200.36100200.43100

200.24115

Size a (mm) b (mm) Weight (kg) Box qty*
B34 78 20 0.24 115
C42 78 20 0.36 100
D48 78 20 0.43 100
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
