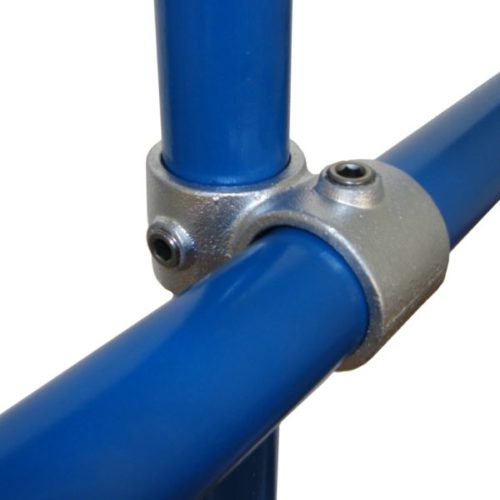

161 – Offset Crossover

Qty 1-910-2425-4950+
Price each £4.27£4.06£3.84£3.63



Product Code: N/A Category:


Designed to form a 90° crossover joint between two tubes, this fitting can reduce the need for cutting on horizontal rails. To add to existing structures, types 137 and 160 can often be used as alternatives.

Product Data & Dimensions

Size a (mm) b (mm) Weight (kg) Box qty*
A27 31.5 38 0.22 192
B34 38.5 41 0.33 105
C42 46 49.5 0.50 48
D48 51 55 0.57 40
E60 61 67 0.89 24
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
