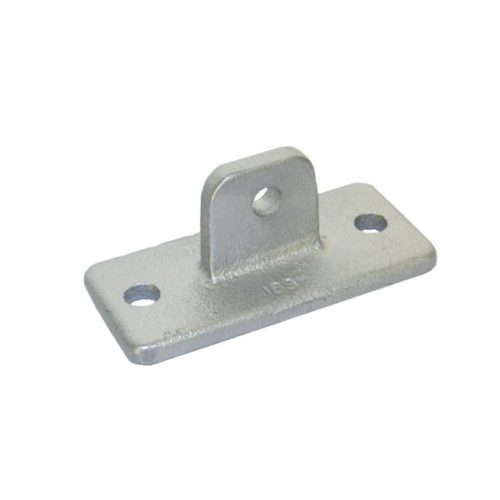

169M – Swivel Base Flange Male Part

Qty 1-910-2425-4950+
Price each £5.20£4.94£4.68£4.42

£5.20

Quantity

Product Code: N/A Category:
Description

Description

A versatile swivel fitting, useful for fixing angled tubes to walls etc. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we will be pleased to quote for on request.

N.B. This fitting is available in one size only to suit all sizes of type 173F. This fitting is not designed to withstand lateral loading.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Product Data & Dimensions

Size b (mm) c (mm) d (mm) Hole Dia (mm) Weight (kg) Box qty*
– 112 85 32 11 0.37 100
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
