171 – Double Sided Mesh Panel Clip

Qty 1-910-2425-4950+
Price each £2.70£2.57£2.43£2.30

£2.70

Quantity

Product Code: N/A Category:
Description

Description

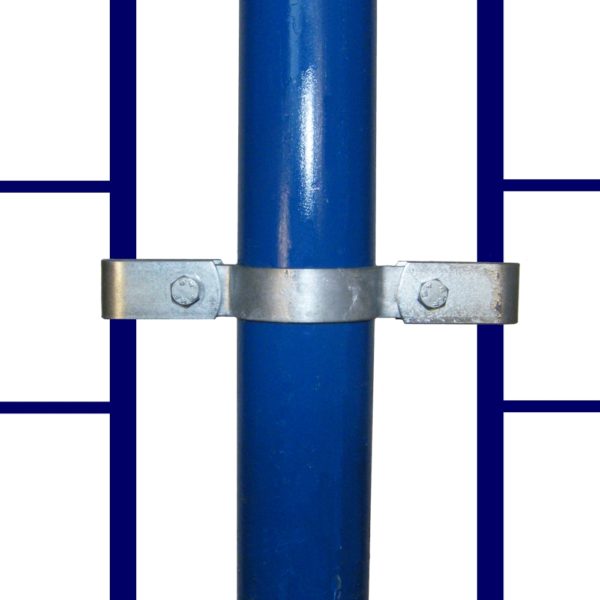

A double mesh panel clip for attaching mesh panels to both sides of tube. Typically used for retaining weld mesh panels into guardrail. To correctly retain the weld mesh panel in place using this clip, the mesh should be framed with an 8mm bar.

For single-sided clips, please refer to type 170. This fitting may also be used without the small return part to secure certain other types of sheet material to tubes eg. board. The tube cannot be joined within the fitting.

N.B. This item is manufactured from steel, not malleable iron.

Please note that bolts are BZP coated.

Designed to suit 8mm rod.

Product Data & Dimensions

Size a (mm) b (mm) Weight (kg) Box qty*
A27 50 – 64 24 – 38 0.11 160
B34 54 – 64 28 – 38 0.11 260
C42 60 – 70 34 – 44 0.11 240
D48 62 – 72 34 – 44 0.12 240
E60 70 – 80 45 – 55 0.14 130
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.

Additional information

Additional information

Weight N/A
