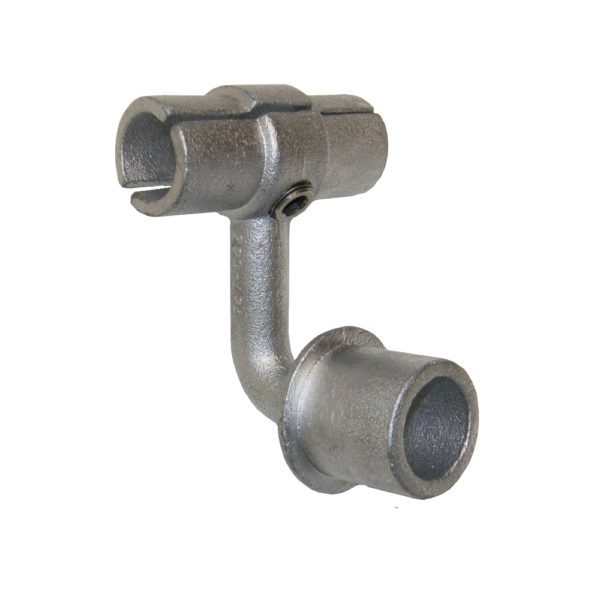

747 - DDA Assist Expanding Internal Swivel Bracket

747 – DDA Assist Expanding Internal Swivel Bracket

Qty 1-910-2425-4950+
Price each £19.30£18.34£17.37£16.41

£19.30

Quantity

Product Code: N/A Category:
Description

Description

To attach handrail to an upright at any angle when used in conjunction with type 101 or 125 for a single rail or type 104 for a double rail.

Product Data & Dimensions

Size a (mm) b (mm) c (mm) d (mm) Weight (kg) Box qty*
C42 80 38.5 32 25.4 0.85 38
D48 – – – – 1.07 30
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
