Description

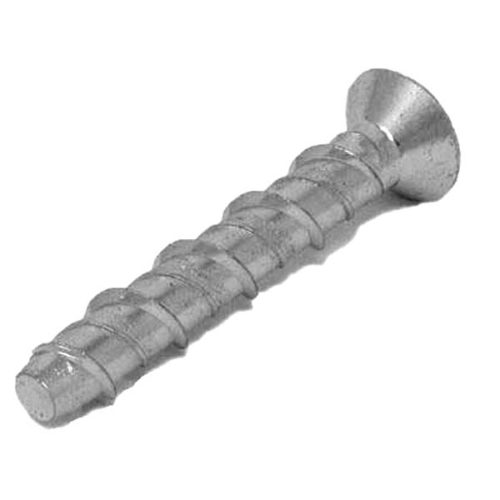

The Ankerbolt is a self-tapping anchor for use in a variety of base materials. The undercutting action provides a positive anchorage with no expansion forces.
The wide range of types and sizes gives flexibility of choosing the correct anchor according to the fixture thickness.
Base Materials:
Concrete C20/25 to C50/60
• Non-Cracked Concrete
• Hollow Concrete Planks
• Solid Brickwork
• Concrete Block
• Natural Stone
Features
Undercutting Action
• Fast And Secure Installation
• Expansion Free
• Through Fixing
• High Performance
• Zinc Plated Minimum 5μm (For Dry, Internal Applications Only)
| Description | Drill size (mm) | Clearance hole in fixture (mm) | Max fixture fastened (mm) | Driver |
|---|---|---|---|---|
| 6 x 50 Bzp Csk Ankerbolt | 6 | 10 | 20 | T30 Torx |
| 6 x 75 Bzp Csk Ankerbolt | 6 | 10 | 45 | T30 Torx |
| 6 x 100 Bzp Csk Ankerbolt | 6 | 10 | 70 | T30 Torx |
| 6 x 130 Bzp Csk Ankerbolt | 6 | 10 | 100 | T30 Torx |
| 6 x 150 Bzp Csk Ankerbolt | 6 | 10 | 120 | T30 Torx |
| 8 x 60 Bzp Csk Ankerbolt | 8 | 12 | 20 | T45 Torx |
| 8 x 75 Bzp Csk Ankerbolt | 8 | 12 | 35 | T45 Torx |
| 8 x 100 Bzp Csk Ankerbolt | 8 | 12 | 60 | T45 Torx |
| 10 x 75 Bzp Csk Ankerbolt | 10 | 14 | 25 | T50 Torx |
| 10 x 100 Bzp Csk Ankerbolt | 10 | 14 | 50 | T50 Torx |
