Description

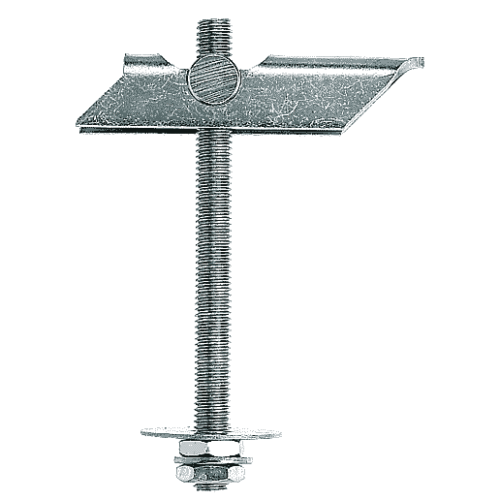

With the Fischer toggle fixing KD lightweight components such as light shelves and wall cabinets can be fixed in gypsum plasterboard and gypsum fibreboard, chipboard, and hollow ceilings made of brick and concrete. The toggle fixing is inserted into the drill hole in the pre-positioned installation and flips open independently when behind the board. This does not require a special installation tool and allows for a fast, convenient installation.
- High load capacity due to good load distribution on the transition beams.
- High flexibility due to a long threaded rod. Use with various panel thicknesses and attachment thicknesses.
- No installation tool necessary.

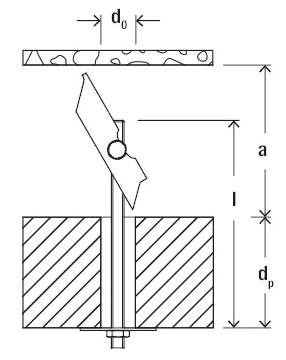

| Drill diameter | d0 | 16mm | 16mm | 20mm |  |
| Max. panel thickness | dp | 63 | 63 | 55 | |
| Min. cavity depth | a | 70 | 70 | 75 | |
| Anchor length | l | 100 | 100 | 100 | |
| Thread | ø x length | M5 x 100 | M6 x 100 | M8 x 100 |
