Description

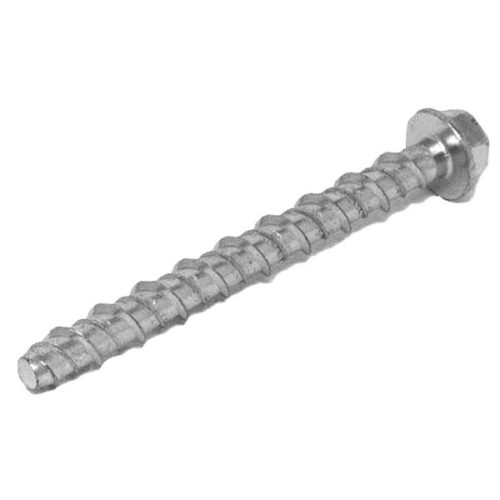

The Ankerbolt is a self-tapping anchor for use in a variety of base materials. The undercutting action provides a positive anchorage with no expansion forces.
The wide range of types and sizes gives flexibility of choosing the correct anchor according to the fixture thickness.
Base Materials:
Concrete C20/25 to C50/60
• Non-Cracked Concrete
• Hollow Concrete Planks
• Solid Brickwork
• Concrete Block
• Natural Stone
Features
Undercutting Action
• Fast And Secure Installation
• Expansion Free
• Through Fixing
• High Performance
• Mechanical Galvanised Minimum 40μ
| Description | Drill size (mm) | Clearance hole in fixture (mm) | Max fixture fastened (mm) | Spanner AF (mm) |
|---|---|---|---|---|
| 6 x 75 Galv Hex. Flange Ankerbolt | 6 | 10 | 45 | 10 |
| 6 x 100 Galv Hex. Flange Ankerbolt | 6 | 10 | 70 | 10 |
