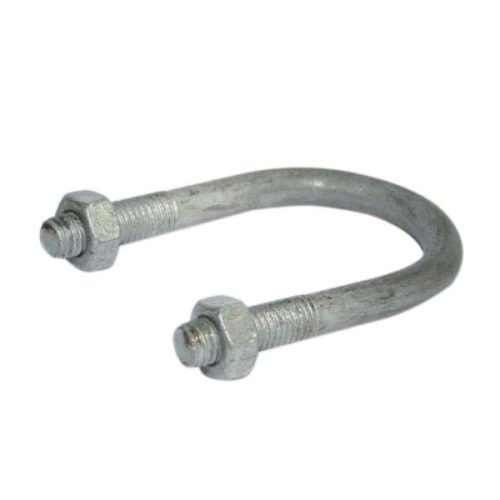

Galvanised U Bolt c/w Nuts

Qty 1-2425-4950-249250-499500+
Price each £0.88£0.79£0.70£0.66£0.62

£0.88

Quantity

Product Code: N/A Category:
Description

Description

These are standard Sizes. Please contact us for non-standard sizes, and backing plates, which can be quickly produced to meet your requirements.



Thread Size Pipe Size (nominal bore) Inside Leg Length (mm) Between legs (mm)
M6 20 47 28
M6 25 51 35
M8 25 62 37
M8 32 67 46
M10 40 85 50
M10 50 95 65
M12 50 105 63
M12 65 105 76
M12 80 126 90
M12 100 144 119
M12 125 182 142
M12 150 210 170
M12 200 252 228
M16 250 318 276
M16 300 363 327
Additional information

Additional information

Weight 0.03 kg
