Description
| Shield/Drill Ø (mm) | Length (mm) | Max. Thickness Fastened (mm) | Thread | Head Ø (mm) |
| 8 | 60 | 25 | M6 | 14 |
| 8 | 85 | 50 | M6 | 14 |
| 10 | 75 | 35 | M8 | 16 |
| 10 | 100 | 60 | M8 | 16 |

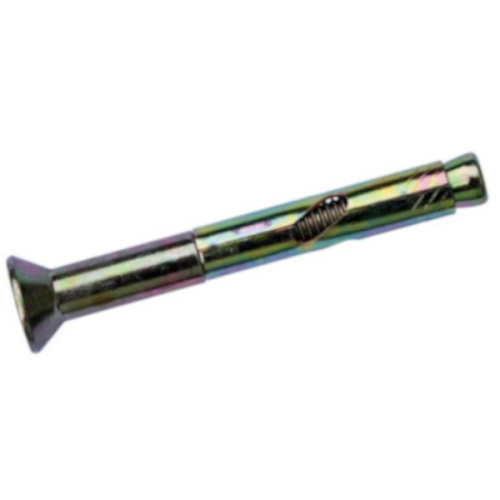

Zinc Plated Countersunk Sleeve Anchor
Description
Additional information
Additional information
| Weight | 0.02 kg |
|---|
