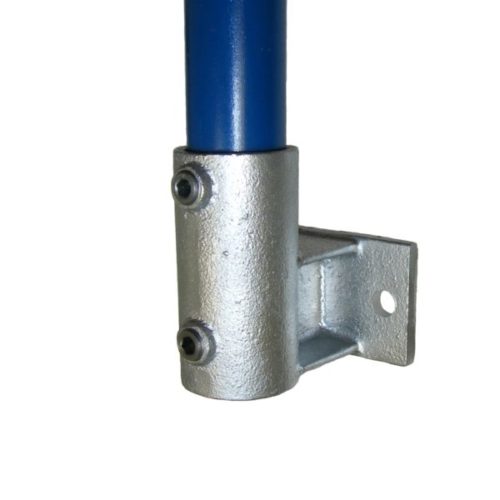

145 – Railing Side Support (Horizontal)

Qty 1-910-2425-4950+
Price each £11.70£11.12£10.53£9.95

£11.70

Quantity

Product Code: N/A Category:
Description

Description

A palm-type fitting, often used to attach guardrail uprights to walls, staircases and ramps. In standard form, the tube cannot pass through the bottom of the fitting, although the fitting may be modified to accommodate this at extra cost. Dependent on load requirements, type 144 may sometimes be used as an alternative.

Product Data & Dimensions

Size a (mm) b (mm) c (mm) d (mm) Hole Dia (mm) Weight (kg) Box qty*
B34 102 45 67 57 15 0.86 37
C42 111 53 73 64 15 1.21 25
D48 119 68 89 73 15 1.55 16
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.

Additional information

Additional information

Weight N/A
