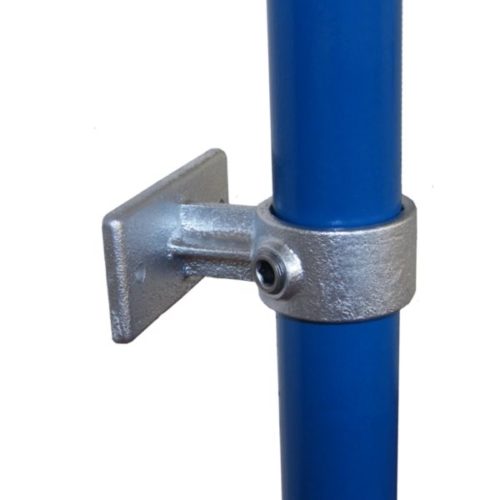

143 – Handrail Bracket

Qty 1-910-2425-4950+
Price each £5.54£5.26£4.99£4.71

£5.54

Quantity

Product Code: N/A Category:
Description

Description

Often used to attach to walls, as a positional wall fixing for structures, or to attach kick-plates to uprights. The tube cannot be joined within the fitting.

This fitting is not to be used as a solitary base plate for guardrail or similar load bearing applications.

Product Data & Dimensions

Size a (mm) b (mm) c (mm) d (mm) e (mm) Hole Dia (mm) Weight (kg) Box qty*
A27 54 77 57 44 7 8 0.32 100
B34 57 80 62 44 7 8 0.38 80
C42 62 102 82.5 45 7 8 0.49 57
D48 77 107 82.5 50 7 8 0.60 40
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
