146 – Side Palm Fixing

Qty 1-910-2425-4950+
Price each £8.80£8.36£7.92£7.48

£8.80

Quantity

Product Code: N/A Category:
Description

Description

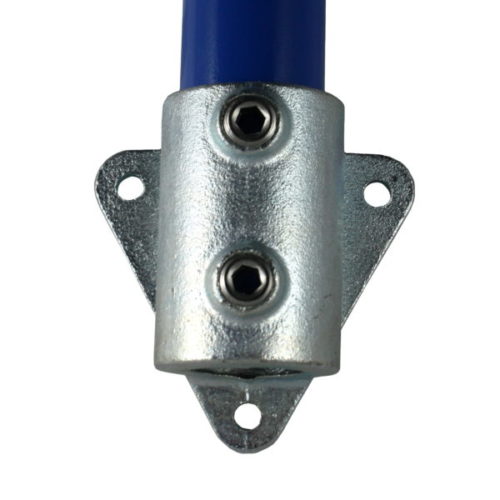

A palm-type fitting, often used to attach guardrail uprights to walls, staircases and ramps. In standard form, the tube cannot pass through the bottom of the fitting, although the fitting may be modified to accommodate this at extra cost (with loss of use of bottom bolt hole).

Product Data & Dimensions

Size b (mm) c (mm) Hole Dia (mm) Weight (kg) Box qty*
B34 68 63 10 0.58 50
C42 82 71 10 0.76 35
D48 86 79 10 0.84 28
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.

Additional information

Additional information

Weight N/A
