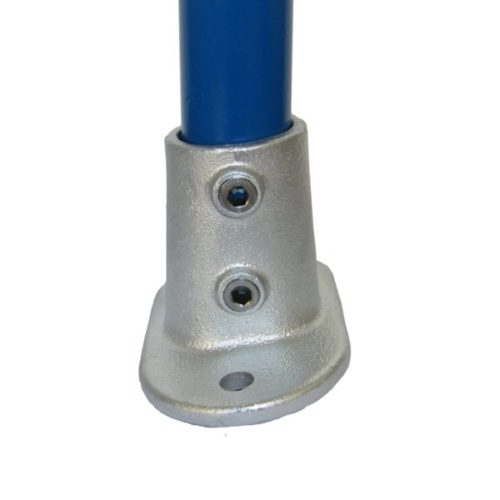

152 – Slope Base Flange (0° – 11°)

Qty 1-910-2425-4950+
Price each £10.44£9.92£9.40£8.87

£10.44

Quantity

Product Code: N/A Category:
Description

Description

Base flange for sloping sites, adjustable from 0° to 11°, usually used for guardrail and wheelchair ramp uprights. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request.

To achieve optimum load characteristics, this fitting should be fitted so that the fixing holes are in line with the applied load.



Product Data & Dimensions

Size b (mm) c (mm) d (mm) e (mm) Hole Dia (mm) Weight (kg) Box qty*
B34 90 127 89 80 15 0.92 30
C42 98 140 101 90 15 1.15 25
D48 99 153 113 96 15 1.42 20
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
