169 – Swivel Base Flange

Qty 1-910-2425-4950+
Price each £9.77£9.28£8.79£8.30

£9.77

Quantity

Product Code: N/A Category:
Description

Description

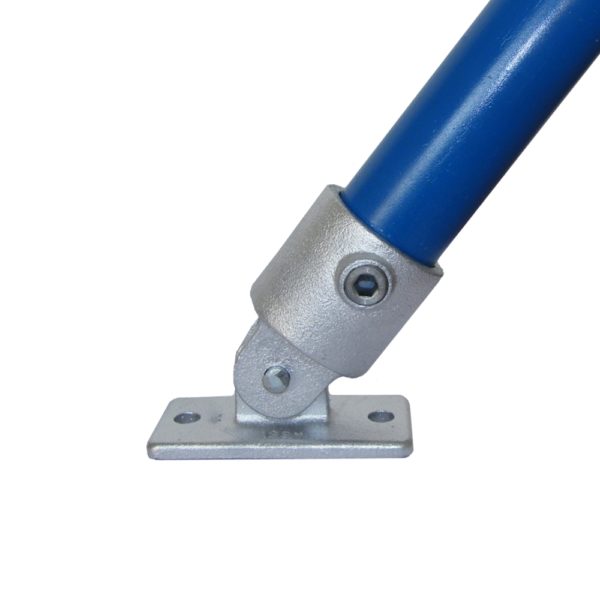

A versatile swivel fitting, useful for fixing angled tubes to walls etc. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. The assembly is riveted together, although items can be supplied separately as 169M and 173F.

This fitting is not to be used as a base plate for guardrail. This fitting is not designed to withstand lateral loading.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Product Data & Dimensions

Size a (mm) b (mm) c (mm) d (mm) e (mm) Hole Dia (mm) Weight (kg) Box qty*
A27 61 112 85 93 52 11 0.66 80
B34 61 112 85 93 52 11 0.75 80
C42 69 112 85 98 52 11 0.82 45
D48 77 112 85 109 52 11 0.89 30
E60 89 112 85 121 52 11 1.21 24
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.

Additional information

Additional information

Weight N/A
