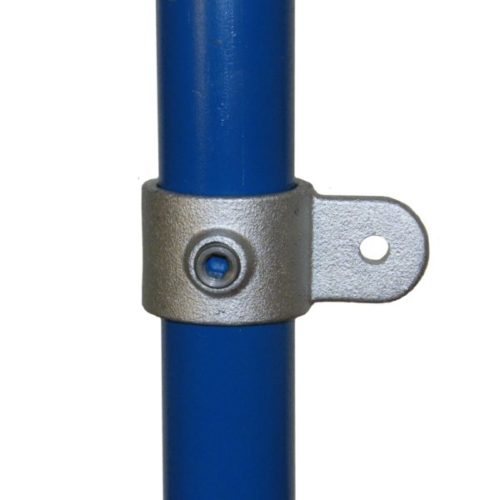

173M – Single Swivel Combination Male Part

Qty1-910-2425-4950+
Price each£3.60£3.42£3.24£3.06

£4.17

Quantity

Product Code: N/A Category:
Description

Description

Single lugged fitting. Can be supplied pre-assembled to type 173F to form type 173. Depending on load requirements, this fitting may sometimes be used to fix flat sheets to tubes. The tube cannot be joined within the fitting.

This fitting is not designed to withstand lateral loading.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Product Data & Dimensions

Sizeb (mm)Weight (kg)Box qty*
A27400.22180
B3443.50.26150
C42480.33105
D48530.3684
E60600.5142
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
