173 – Single Swivel Combination

Qty 1-910-2425-4950+
Price each £8.07£7.67£7.26£6.86



Product Code: N/A Category:

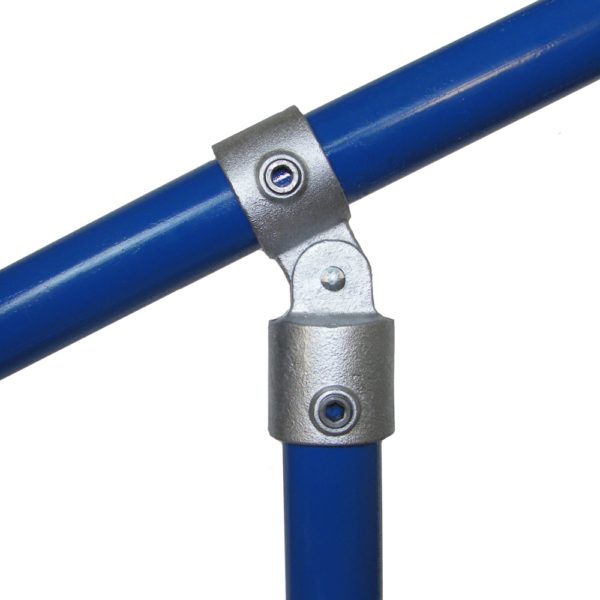

A versatile swivel fitting, useful for awkward applications where angles cannot be accommodated by adjustable angle fittings. The through tube (sloping in photo) cannot be joined within the fitting. The assembly is riveted together, although items can be supplied separately as 173M and173F.

This fitting is not designed to withstand lateral loading. An entire structure should not be built only using swivel fittings, this would be unstable.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Product Data & Dimensions

Size a (mm) b (mm) Weight (kg) Box qty*
A27 61 106 0.49 75
B34 61 104.5 0.64 64
C42 69 117 0.79 42
D48 77 130 0.89 26
E60 89 152 1.33 18
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
