174 – Swivel Tee

Qty 1-910-2425-4950+
Price each £17.40£16.53£15.66£14.79

£17.40

Quantity

Product Code: N/A Category:
Description

Description

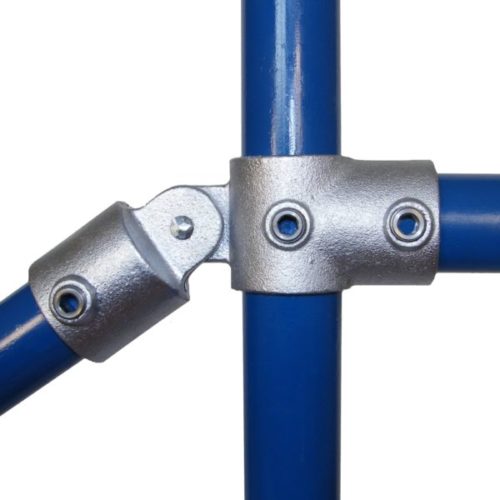

A versatile swivel fitting, often used for braces and where staircase middle rails join level sections. The through tube (vertical in photo) cannot be joined within the fitting. The assembly is riveted together, although items can be supplied separately as 174M and 173F.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Product Data & Dimensions

Size a (mm) b (mm) c (mm) Weight (kg) Box qty*
D48 77 53 68 1.22 20
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
