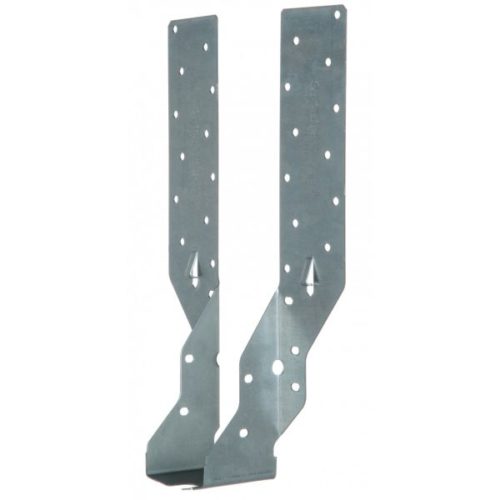

Long Leg Wrap-over Hanger

£4.68

Quantity 1-45-2425-5960-119120+
Price each £4.68£4.21£3.74£3.28£3.04

£4.68 ( £5.62 INC VAT)

Quantity

Product Code: 214-LL038X450 Category:

Product Description

One piece non-welded, standard height, adjustable joist hanger for supporting timber joists from timber members. Also available in standard, and extra-long leg versions.

Long leg suitable for loft conversions and applications where the hanger extends below the supporting member.

Pre-Galvanised Mild Steel
Thickness: 0.9 mm

Features

• A galvanised joist hanger that provides great support with ease of installation.
• Published performance values are based upon 3.75 x 30mm square twist nails being used throughout.
• Wider strap provides more surface area on the supporting timber and allows increased nail spacing, enhancing the performance of the critical hanger-to-support part of the connection.
• Minimum and maximum nailing schedules are stamped into the strap providing correct installation information for site operatives.
• Speed-prong holds the hanger in position to allow easier attachment. The installer no longer has to try to hold hanger, joist and nail with one hand and swing a hammer with the other.
• JHA270 range features a location tab which allows easier alignment of the hanger.
• The model number and size is stamped into the seat of the hanger for easy identification, even after installation.

Applications

• Suitable On Solid sawn timber joists

When to Use

• Face Fix
• Wrap Over

Technical data sheet

Declaration of Performance

Technical approvals

Additional Information

Weight 0.465 kg
