Standard Wrap-over Hanger

Qty 1-910-2930-5960+
Price each £0.60£0.54£0.51£0.48

£0.60

Quantity

Product Code: N/A Category:
Description

Description

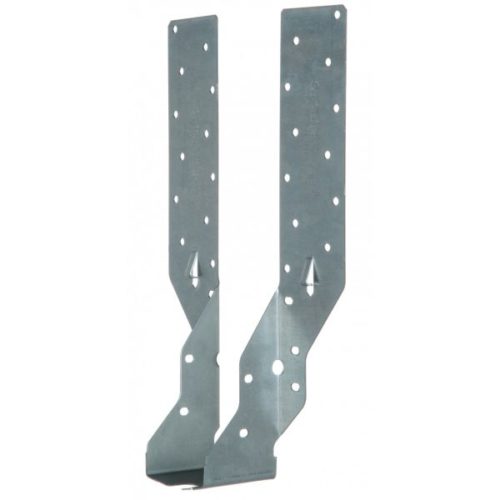

One piece non-welded, standard height, adjustable joist hanger for supporting timber joists from timber members. Also available in long leg, and extra-long leg versions.

Suitable for timber height of up to 200mm as a wrap over hanger and up to 250mm as a face fix hanger.

Pre-Galvanised Mild Steel
Thickness: 0.9 mm

Features

• A galvanised joist hanger that provides great support with ease of installation.
• Published performance values are based upon 3.75 x 30mm square twist nails being used throughout.
• Wider strap provides more surface area on the supporting timber and allows increased nail spacing, enhancing the performance of the critical hanger-to-support part of the connection.
• Minimum and maximum nailing schedules are stamped into the strap providing correct installation information for site operatives.
• Speed-prong holds the hanger in position to allow easier attachment. The installer no longer has to try to hold hanger, joist and nail with one hand and swing a hammer with the other.
• JHA270 range features a location tab which allows easier alignment of the hanger.
• The model number and size is stamped into the seat of the hanger for easy identification, even after installation.

Applications

• Suitable On Solid sawn timber joists

When to Use

• Face Fix
• Wrap Over

Additional information

Additional information

Weight 0.23 kg
