131 – Wall Flange

Qty 1-910-2425-4950+
Price each £4.37£4.15£3.93£3.71

£4.37

Quantity

Product Code: N/A Category:
Description

Description

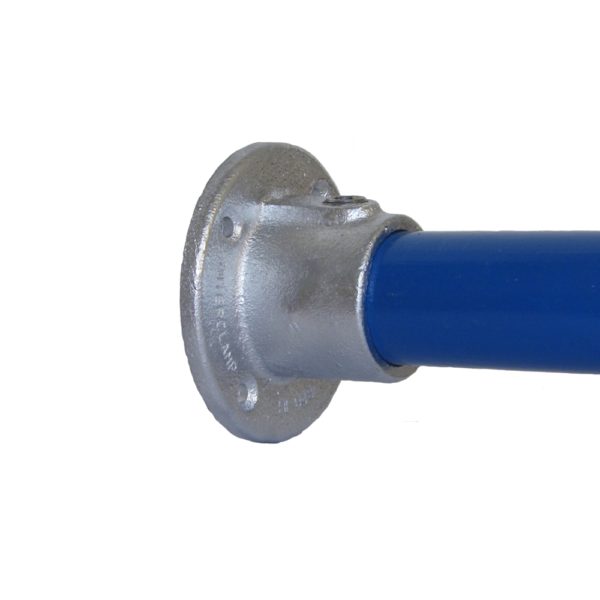

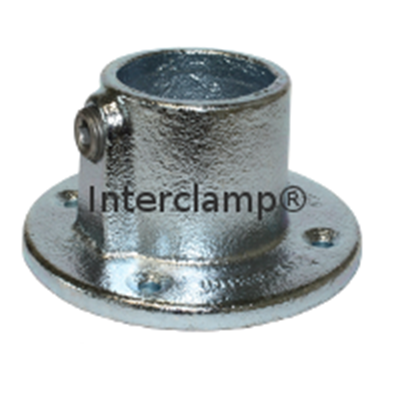

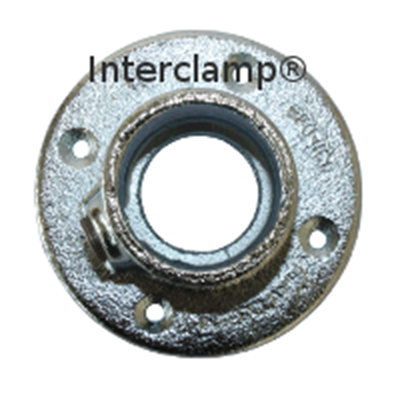

Positional fixing flange which is often used where rails meet walls on level sites.

Warning: This Interclamp fitting is not recommended as a baseplate to support handrailing, guard-railing, parapets, balustrades or other structures. Please use type 132 as an alternative.

Product Data & Dimensions

Size b (mm) c (mm) d (mm) Hole Dia (mm) Weight (kg) Box qty*
A27 42 83 59 7 0.31 98
B34 48 89 65 7 0.48 70
C42 51 102 76 7 0.65 48
D48 59 114 88.5 7 0.86 32
E60 64 128 97 7 1.11 21
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.

Additional information

Additional information

Weight N/A
