Coach Bolts: Your Questions Answered
Choosing the right fastener might prove to be a more difficult task than it seemed at first. There are two main types of fasteners: bolts and screws. However, each range of fasteners is then divided into several categories, from wood screws and set screws to U-bolts and coach bolts. With such a selection of fasteners, it is understandable to seek professional advice when you do not know the correct fastener for your application.
In order to help those confused by the overwhelming range of fasteners available, we will provide further information about such fasteners. Today, we are focusing on coach bolts. If you need additional information about any of our fasteners, contact us today.
What are coach bolts?

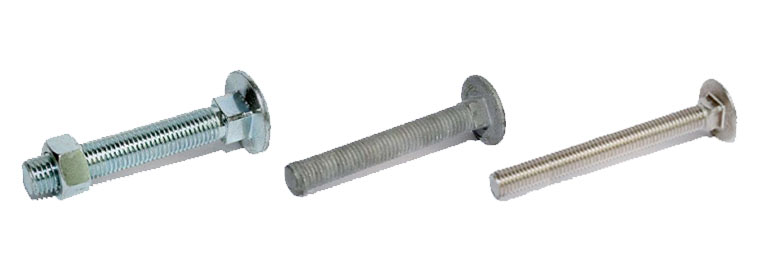

Also known as carriage bolts and cup square hex bolts, coach bolts are distinctive bolts that feature a mushroom head that sits on top of a square section. This square section prevents coach bolts from turning and/or moving. These bolts come in various sizes and finishes, including zinc plated coach bolts, galvanised coach bolts and stainless steel coach bolts.
Related: What are coach bolts? Carriage coach bolts explained.
What are coach bolts used for?
Coach bolts are mostly used to hold together wood to wood, however, can also be used to fix metal to wood and even metal to metal. Carriage bolts are used alongside a nut to firmly tighten the connection between the bolt and the material.
Where to buy coach bolts?
These types of bolts can be purchased at Speedy Fixings. We stock a wide range of coach bolts, including coach bolts with nuts, such as the M8 zinc plated coachbolt with nut. Our coach bolts are available in various thread sizes and lengths to suit a variety of applications.
Grade 316 stainless steel carriage bolts can also be supplied. These are suitable for environments exposed to corrosive or hazardous substances, such as offshore environments and chemical industries.
How strong are coach bolts?
Coach bolts are heavy-duty bolts that not only provide security due to the fact that they can only be unbolted from one side but also aesthetics as their dome-shaped heads offer a smooth finished look.

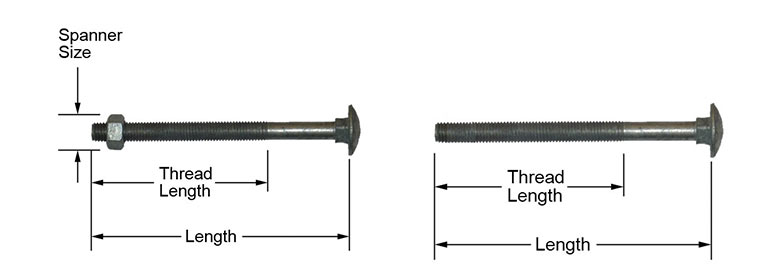

How to measure coach bolt length?
The length of coach bolts can be measured from the underside of the head to the end of the threaded portion. Carriage bolts can be searched for using the thread diameter. For instance, M12 coach bolts have a thread diameter of 12 millimetres and M20 coach bolts have a thread diameter of 20 millimetres.
How to install coach bolts?
Materials needed:
- Coach bolt
- Nut
- Washer
- Ratchet
- Hammer
- Drill
- Drill bit
How to:
Step 1. Use a drill bit that is just large enough to let the threads pass through the material.
Step 2. Drill through the material.
Step 3. Insert the bolt and tap the head in.
Step 4. Add a washer and nut on the other side of the bolt. Use a ratchet or spanner to tighten the bolt.
